FEATURES:

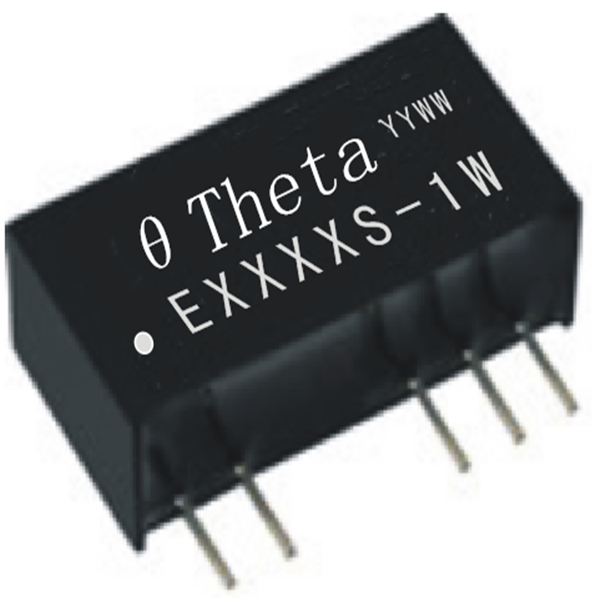

θ Ultra Compact SIP package
θ Operating temperature range: -40℃ to +105℃
θ High efficiency up to 86%
θ Isolation voltage: 3K VDC
θ High power density
θ No external component required
θ International standard pin-out
θ UL,EN approval
E_S-2W & F_S-2W series is specially designed for applications where an isolated voltage is required in a distributed power supply
system. It is suitable for:
θ Where the voltage of the input power supply is stable (voltage variation: ±10%Vin);
θ Where isolation is necessary between input and output (isolation voltage ≤3000VDC);
θ Where do not has high requirement of line regulation and load regulation;
θ Such as: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
