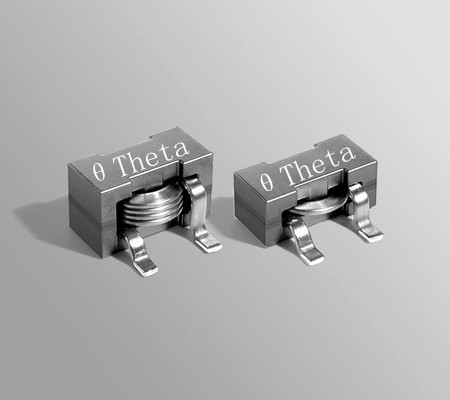

Feature:
• Designed for high current power supply applications
• Flat wire windings provide exceptionally low DCR
• Isat ratings as high as 100 A
Specification:
1、Core material Ferrite
2、Core and winding loss See www.anhwell.com
3、Environmental RoHS compliant, halogen free
4、Terminations RoHS compliant matte tin over nickel over phos
bronze. Other terminations available at additional cost.
5、Weight 21.5 g
6、Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
7、Maximum part temperature +125°C (ambient + temp rise). Derating.
8、Storage temperature Component: –40°C to +125°C.
9、Tape and reel packaging: –40°C to +80°C
10、Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
11、Moisture Sensitivity Level (MSL) 1 (unlimited floor life at<30°C /85% relative humidity)
