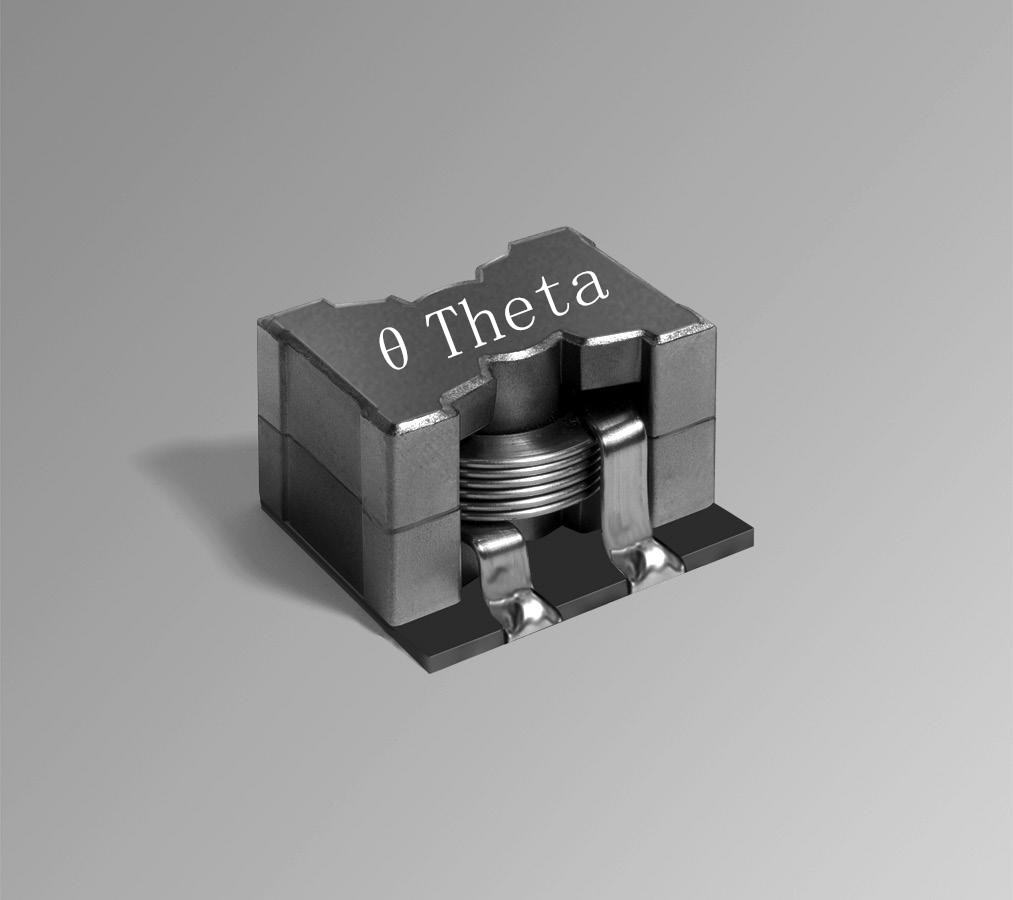

SER Power Inductors

Feature:

• Same electrical specifications and land pattern as the SER2918H

• Mounting plate with three pads for excellent board adhesion

• Extremely low DCR; current handling up to 93.6 Amps

Specification:

1、Core material Ferrite

2、Core and winding loss See www.anhwell.com

3、Environmental RoHS compliant, halogen free

4、Terminations RoHS compliant matte tin over nickel over phos

bronze. Other terminations available at additional cost.

5、Weight 36.2 g

6、Ambient temperature –40°C to +85°C with (40°C rise) Irms current.

7、Maximum part temperature +125°C (ambient + temp rise). Derating.

8、Storage temperature Component: –40°C to +125°C.

9、Tape and reel packaging: –40°C to +80°C

10、Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

11、Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /85% relative humidity)
